How to Use Design2Liferay

A quick start guide to converting your web designs into Liferay components.

🎯 Capture Elements with Ease

Design2Liferay's Chrome Extension makes it easy to select components from any HTML page and convert them into editable Liferay code fragments.

Steps to Capture an Element

  1. Click on the Elements tab in the extension panel.
  2. Click Capture Element.
  3. Start capturing by selecting Start Element Capturing. A red highlight box will follow your cursor as you hover over components.

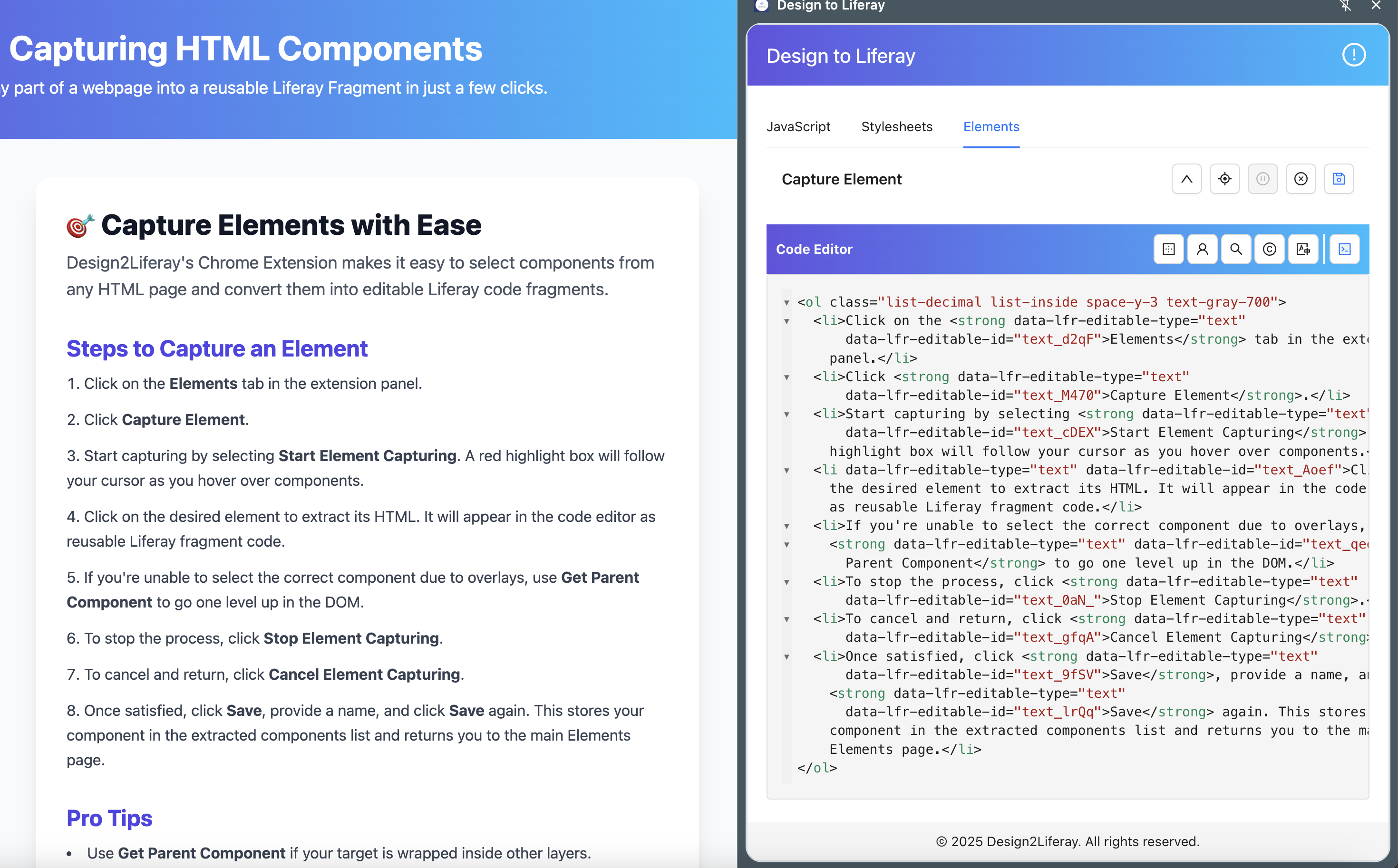

  4. Click on the desired element to extract its HTML. It will appear in the code editor as reusable Liferay fragment code.
  5. If you're unable to select the correct component due to overlays, use Get Parent Component to go one level up in the DOM.
  6. To stop the process, click Stop Element Capturing.
  7. To cancel and return, click Cancel Element Capturing.

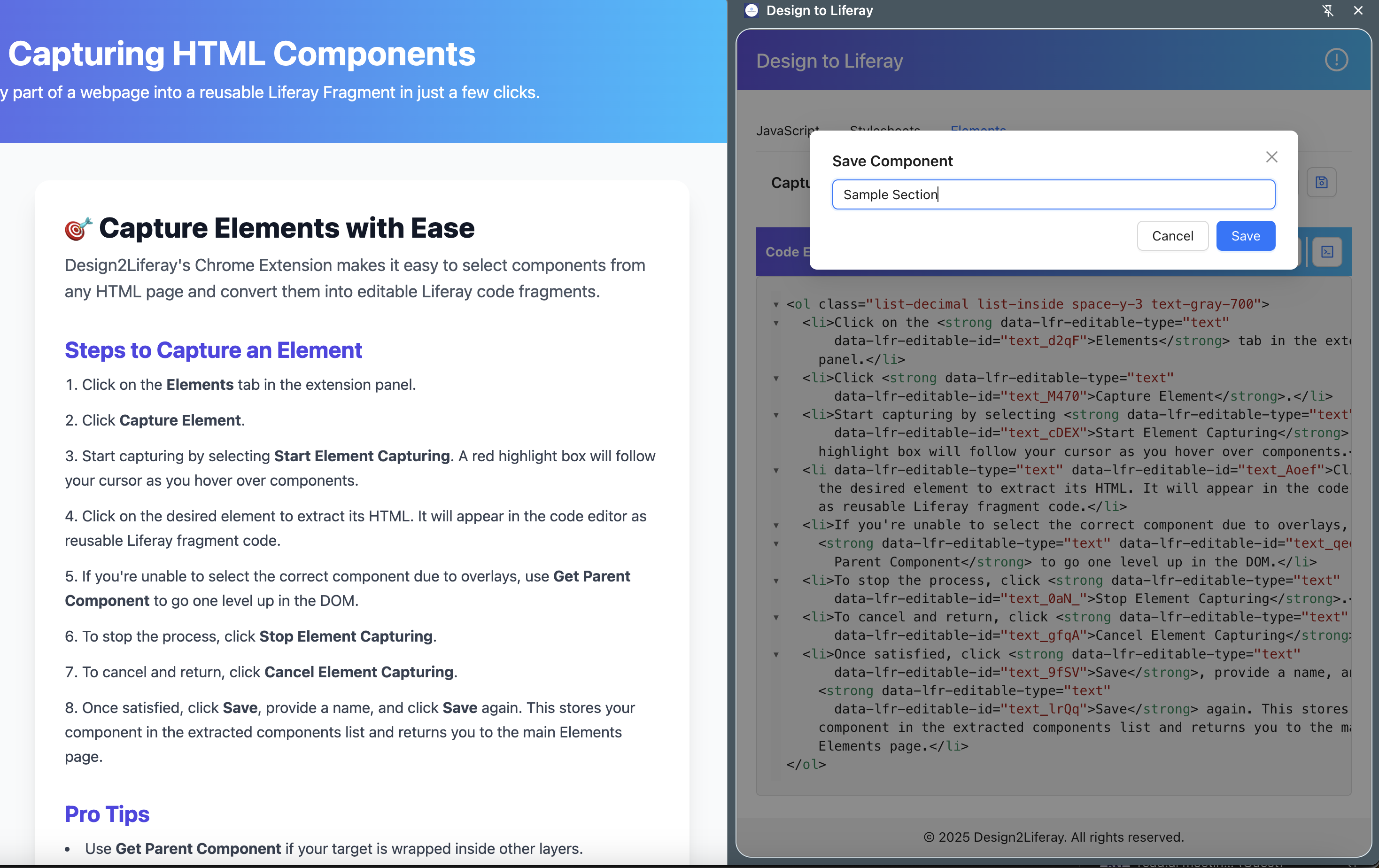

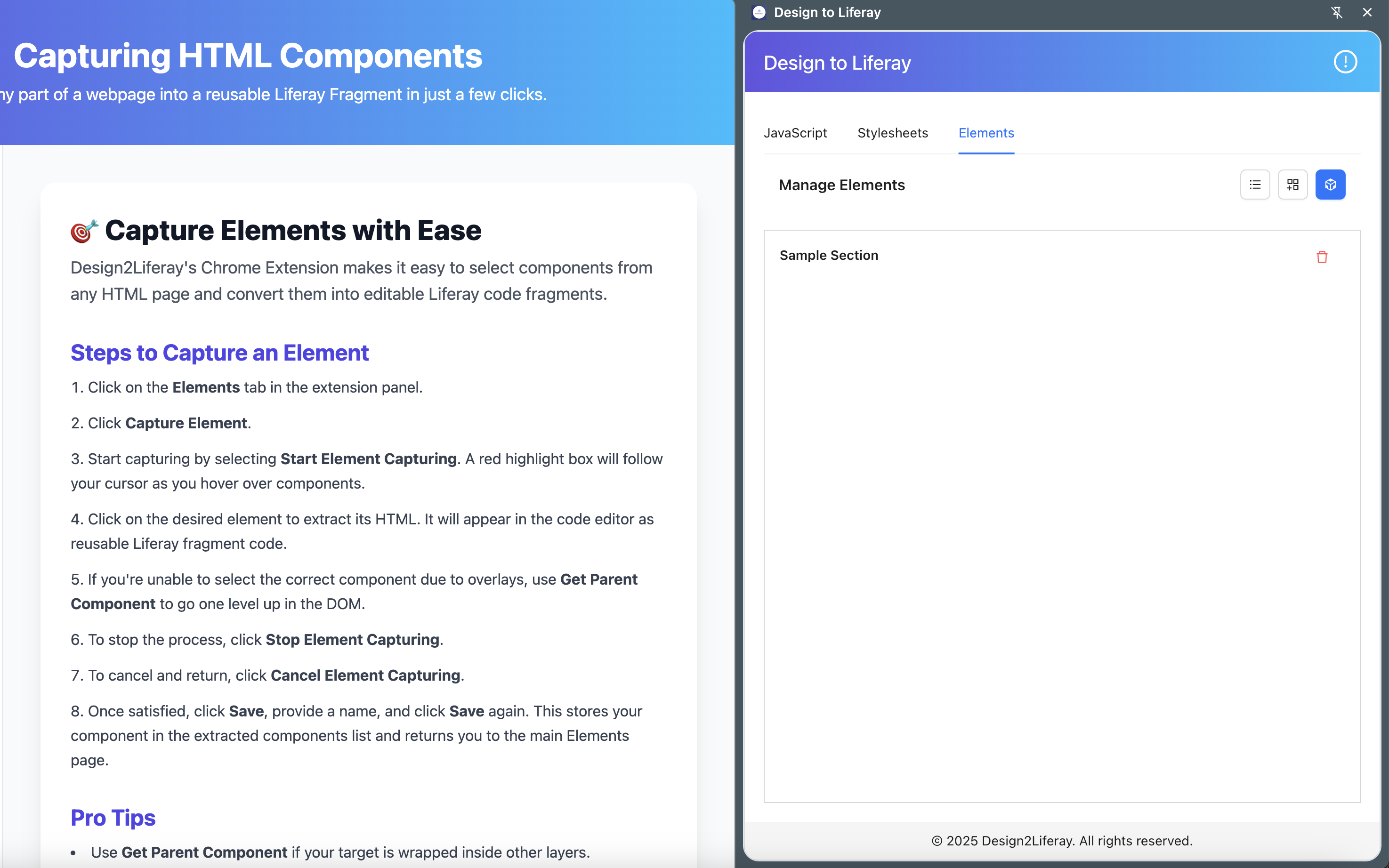

  8. Once satisfied, click Save, provide a name, and click Save again. This stores your component in the extracted components list and returns you to the main Elements page.

💡 Tip:

  • Use Get Parent Component if your target is wrapped inside other layers.
  • Make sure you are not in an iframe or heavily scripted layout for optimal capture accuracy.
  • When capturing a large component that contains repeating elements (like a list of cards), start by capturing the main container as a single component. Then, capture a separate component for one sample item (e.g., a single card). This approach allows you to insert a Dropzone inside the container and reuse the item component dynamically.

Screenshots

Below are snapshots of the capturing flow inside the extension:
